Build Day Four - Headlight and Indicator Mounting

It seemed to be a good idea to mount the lights at this stage of the build as I'd seen many posts about how fiddly and time consuming this was, and others mentioning it was practically impossible to thread the wires through the grommet once the headlight mount was in place.

I'd done a bit of research as the manual was typically vague, and there wasn't much on the net about the revised headlight mounts and how best to wire them through the mount or how to fit them all together.  I spoke to Derek at Caterham and he suggested to cut a small hole in the supplied plastic tubing and thread the indicator wires through there.  A friend popped over last night and we had a run through of how to put them together and then I decided that using the electricians tape and Derek's method was just too messy for my liking, so a trip to Maplin and some 7.5mm and 10mm heat shrink later I managed to do a pretty decent job (in my opinion!).

Rightly or wrongly I thought it a good idea to take a few pictures of how I think they're wired properly so others can take some use from my ideas.

Firstly add IVA strip to the whole edge of the indicator pod, and the screw indicator into pod.  A little drop of Superglue every couple of centimetres is what the factory builders use to hold the IVA strip in place.
Firstly add IVA strip to the whole edge of the indicator pod, and the screw indicator into pod.  A little drop of Superglue every couple of centimetres is what the factory builders use to hold the IVA strip in place.

Use approx 15cm of 7.5mm heat shrink to cover the green and black indicator wires.  It's a tight fit over the indictor rubber, but with a little wiggling it does just go over as you can see in the image.
Use approx 15cm of 7.5mm heat shrink to cover the green and black indicator wires.  It's a tight fit over the indictor rubber, but with a little wiggling it does just go over as you can see in the image.

Once you've applied heat you need to thread the cable in this order
Once you've applied heat you need to thread the cable in this order:
1. Through the nut (it has a flat and a chamfered side see above)
2. Through the washer
3. Through the headlamp mount
4. Through the indicator pod

Unscrew the allen bolt at the top of the headlamp to open it, and also remove the plastic wire covering the 4 cables.
Unscrew the allen bolt at the top of the headlamp to open it, and also remove the plastic wire covering the 4 cables.

Plastic covering removed.
Plastic covering removed.

Now double back the green cable over the heat shrunk section from the indicator and feed this and the black cable up the screw thread on the underside of the headlight.
Now double back the green cable over the heat shrunk section from the indicator and feed this and the black cable up the screw thread on the underside of the headlight.  Apply copper slip to screw thread

Feed indicator grounding wire (black) through the grommet.  using medium to firm pressure, push the grommet back into place.
Feed indicator grounding wire (black) through the grommet.  using medium to firm pressure, push the grommet back into place.

Undo existing ground for headlight, add indicator ground and apply a tiny amount of thread lock and tighten.  Replace glass on headlight and tighten grub screw.
Undo existing ground for headlight, add indicator ground and apply a tiny amount of thread lock and tighten.  Replace glass on headlight and tighten grub screw.

Now loosely ensure all wires are threaded through the mount, washer and nut, and loosely tighten the nut.
Now ensure all wires are threaded through the mount, washer and nut, and loosely tighten the nut.

A good tip is to use a bit of electricians tape to join all the connectors into one which makes it much easier to thread through.  Note the indicator wire will be much shorter, but also tape this to the cables.
A good tip is to use a bit of electricians tape to join all the connectors into one which makes it much easier to thread through.  Note the indicator wire will be much shorter, but also tape this to the cables.

Using approx 30cm of 10mm heat shrink, thread all wires through heat shrink and push about 5cm of the heat shrink up the mount as you can see in the picture.  Apply heat and this should for a nice neat cable.
Using approx 30cm of 10mm heat shrink, thread all wires through heat shrink and push about 5cm of the heat shrink up the mount as you can see in the picture.  Apply heat and this should for a nice neat cable.

Wires easily thread through the mount.
Wires easily thread through the mount.

If you've done it properly it should look something like this.
If you've done it properly it should look something like this.

Spray a little Holts RL2R Rubebr and Nylon lubricant on the grommet.
Spray a little Holts RL2R Rubebr and Nylon lubricant on the grommet.

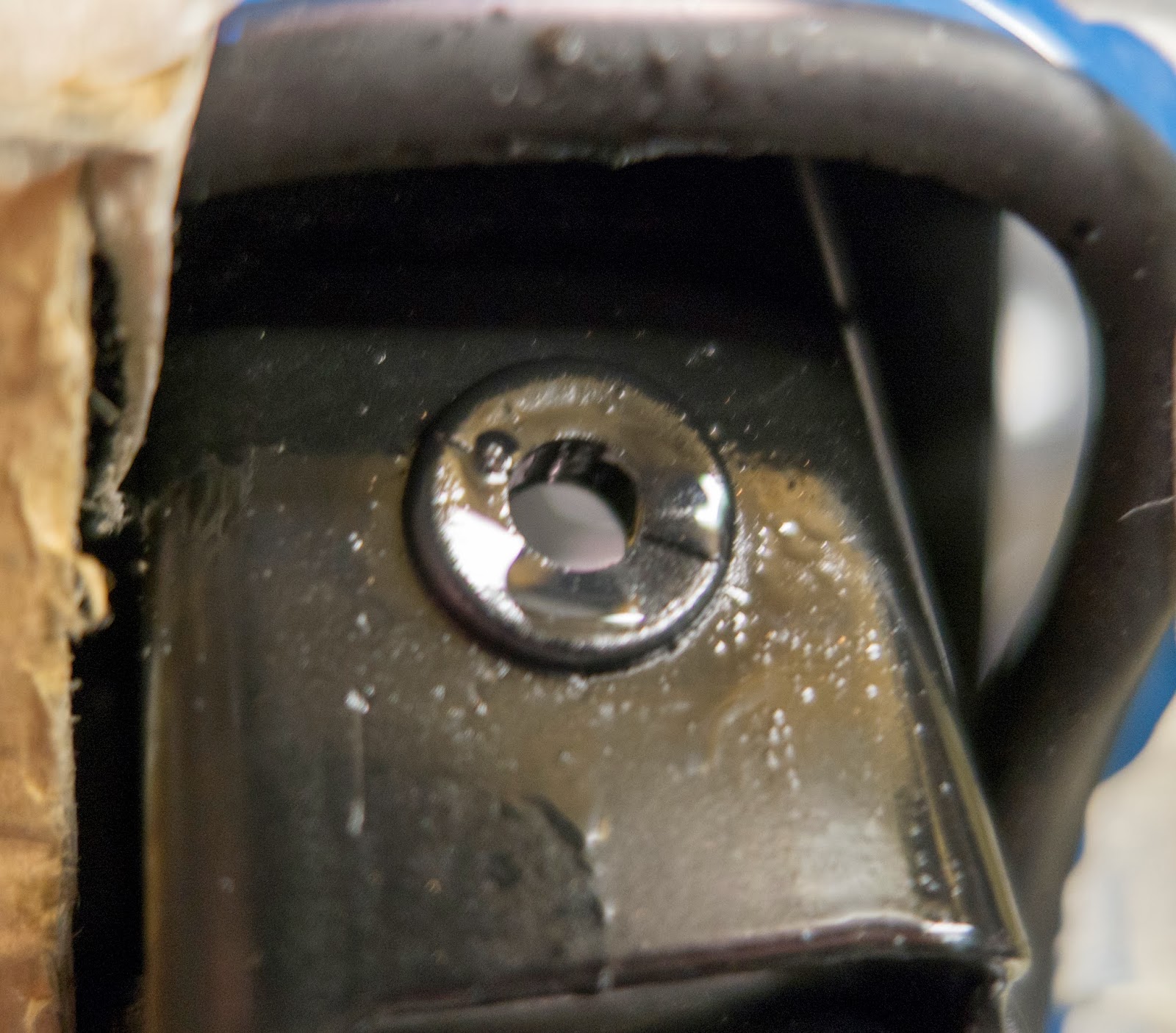

I also sprayed a little in the hole before placing the grommet in position.  I think sprayed a little more in the inside of the grommet to aid threading the cables through.
I also sprayed a little in the hole before placing the grommet in position.  I think sprayed a little more in the inside of the grommet to aid threading the cables through.

I found that by thread the cable through the grommet (should slip throughout quite easily) and then pushing the mount down vertically then placing it on top whilst gently pulling on the cables brought the mount perfectly into position.
I found that by thread the cable through the grommet (should slip throughout quite easily) and then pushing the mount down vertically then placing it on top whilst gently pulling on the cables brought the mount perfectly into position.

The finished article should look like this.  It will provide much better weather protection than splicing the rubber tubing and using electricians tape, plus it looks much more professional.
The finished article should look like this.  It will provide much better weather protection than splicing the rubber tubing and using electricians tape, plus it looks much more professional.

I hope this little guide helps, next step will be to replace the incorrect nut on the underside of the upright which is due in the post tomorrow morning, then fit the anti roll bar.  It's also the start of the weekend, so I hope to make some pretty decent progress...
